What Is The Difference Between A Plate Type Primary Filter And A Bag Filter?
Both Plate Type Primary Filter products and bag filters are commonly used in air filtration systems, but they differ significantly in structure, filtration area, dust-holding capacity, pressure-drop characteristics, installation space, and maintenance requirements. Neither type is universally suitable for every system. The appropriate choice should be based on airflow, required filtration performance, contamination level, equipment structure, and operating conditions.

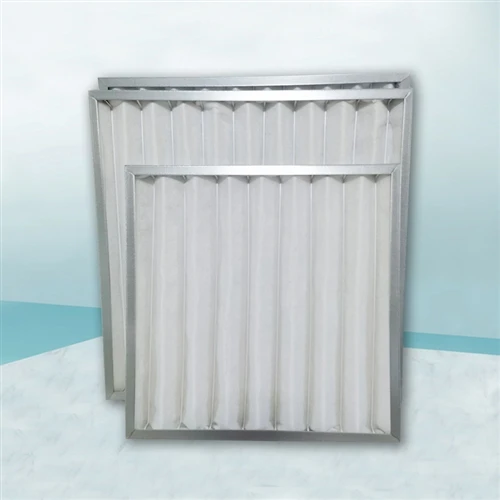

In terms of structure, a Plate Type Primary Filter generally uses flat or pleated filter media installed within a frame, resulting in a relatively compact overall thickness. A bag filter consists of multiple filter bags that provide a larger effective filtration area as air passes through the bag material. Because the structures are different, the installation space requirements also differ. A Plate Type Primary Filter is easier to install in equipment with limited depth, while a bag filter generally requires sufficient space for the filter bags to extend. Therefore, adequate depth and maintenance space should be reserved when designing the filtration section.
In terms of filtration performance, a Plate Type Primary Filter is mainly used for air pre-filtration and the removal of relatively large particles. It is commonly installed as a protective stage before downstream filtration. A bag filter, depending on its filter media and filtration grade, can be used for applications requiring higher filtration performance. However, filtration efficiency cannot be determined solely by the name or structure of the filter. Different filter media, grades, and specifications may be available for both types. Therefore, the actual product specifications and technical data should be reviewed when making a comparison.
In terms of dust-holding capacity, bag filters generally provide a larger effective filtration area because of their bag structure. Under comparable operating conditions, they can therefore accommodate a larger amount of accumulated dust and may be suitable for applications requiring a relatively long replacement interval or a large filtration area. The dust-holding capacity of a Plate Type Primary Filter depends on factors such as filter media area, pleat configuration, filter media material, and overall dimensions. In actual operation, the replacement interval of either type should be determined according to the air contamination level and equipment operating time rather than by structure alone.
In terms of maintenance, a Plate Type Primary Filter is generally easy to remove and replace, making it suitable for equipment requiring convenient filter maintenance. Bag filters require attention to the number of bags, fixing method, and available installation space during removal and replacement. Their maintenance procedures may therefore be affected by the equipment structure. Regardless of the filter type, reliable sealing should always be maintained to prevent air from bypassing the filter.
Only by comparing these parameters under the same operating conditions can the appropriate filter structure be determined more accurately. Therefore, the decision should not be based solely on appearance or structure. Maintenance convenience should also be considered. By evaluating the complete operating conditions and technical requirements, users can select a filtration solution that provides suitable filtration performance, airflow, service life, maintenance convenience, and overall operating efficiency.
